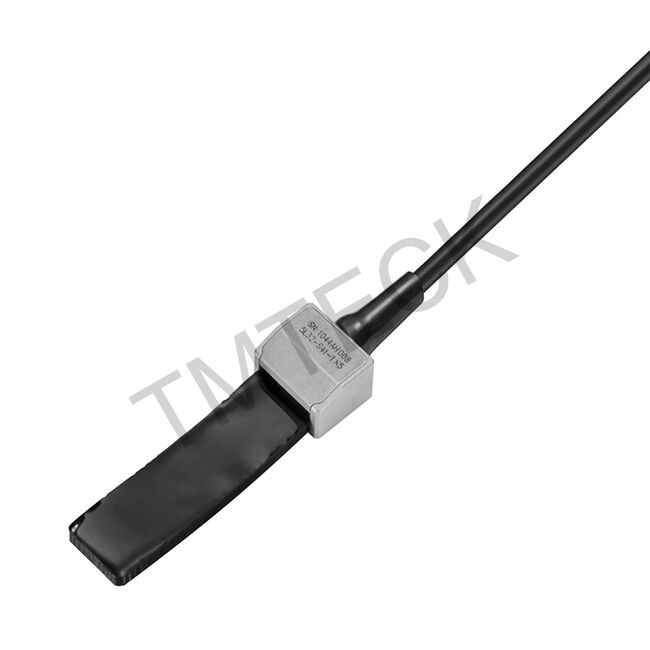

TS41 FLEXIBLE PHASED ARRAY PROBE FOR PIPELINE AND BAR CORROSION INSPECTION

Flexible phased array probe:

can be bent at will. It used water as the coupling medium, which can be very well coupled in detecting pipes, bars and other components.

Advantages

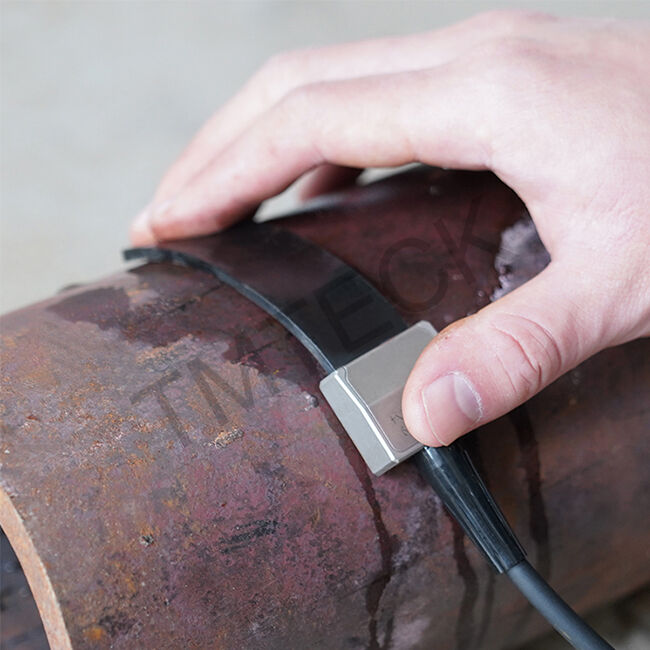

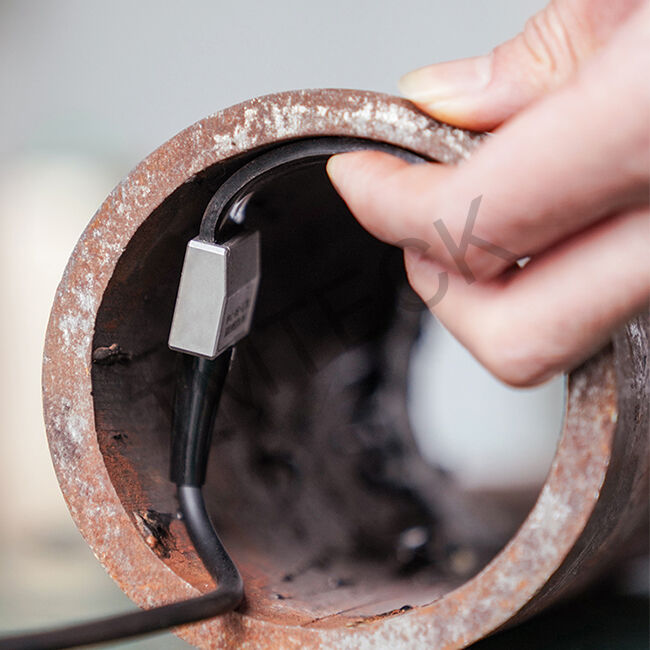

1.Bent to fit the workpiece surface at axis direction 3-4mm thick,can be placed inside the pipe for inner inspection

2.Can be used for different diameter pipes

Application

1.Pipeline and bar corrosion inspection

2.The workpiece can be measured and imaged

3.Other complex geometric artifacts

Specification

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized,include frequency, element number and pitch,etc.

Quick Details

Model Number:5L64-1.0X8-TS41

Element:64

Element Shape:Linear

Size:100x27(mm) 3.94x1.06(in)

Warranty:12 Months

Case:Stainless steel

Application:Pipeline and bar corrosion inspection

Customization:yes

Type:phased array probe

Color:Silver

MOQ:1
