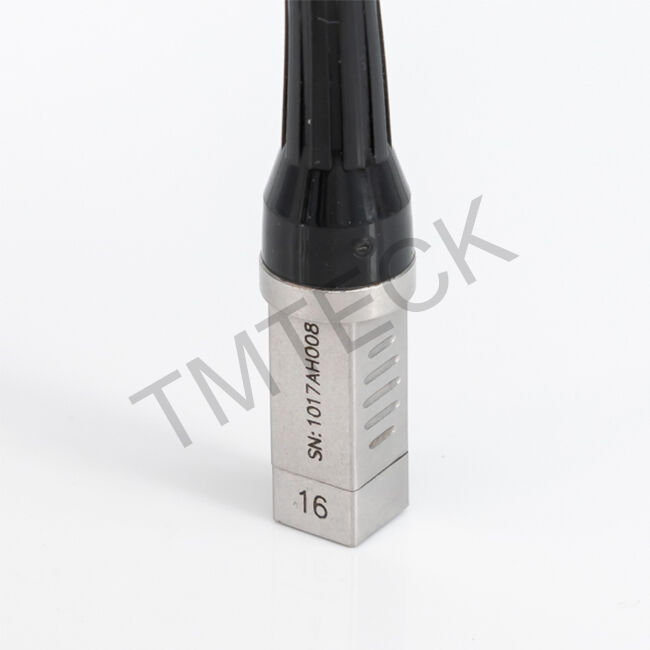

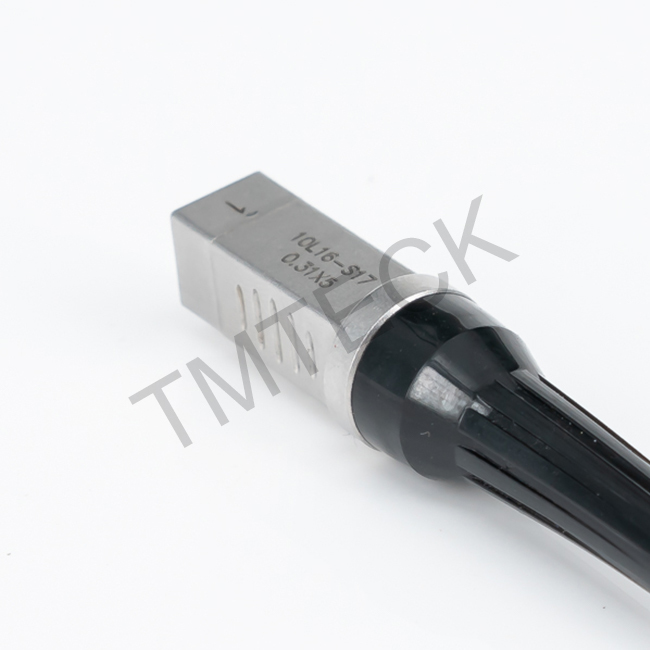

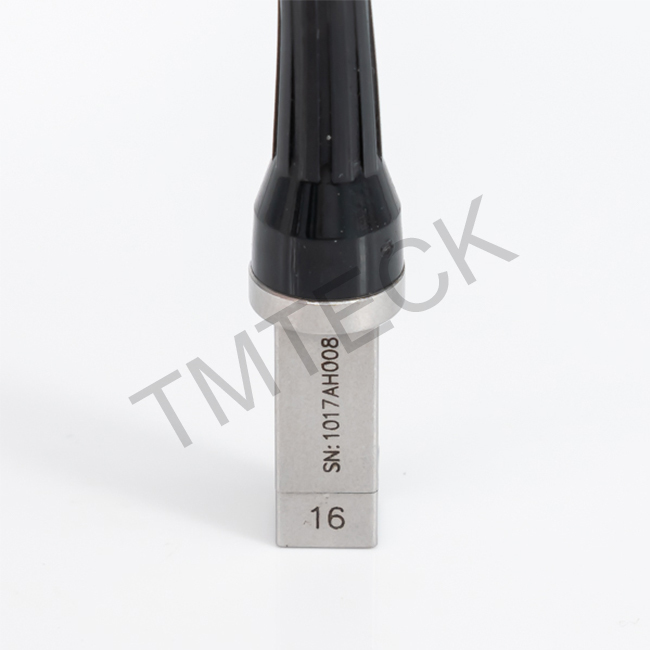

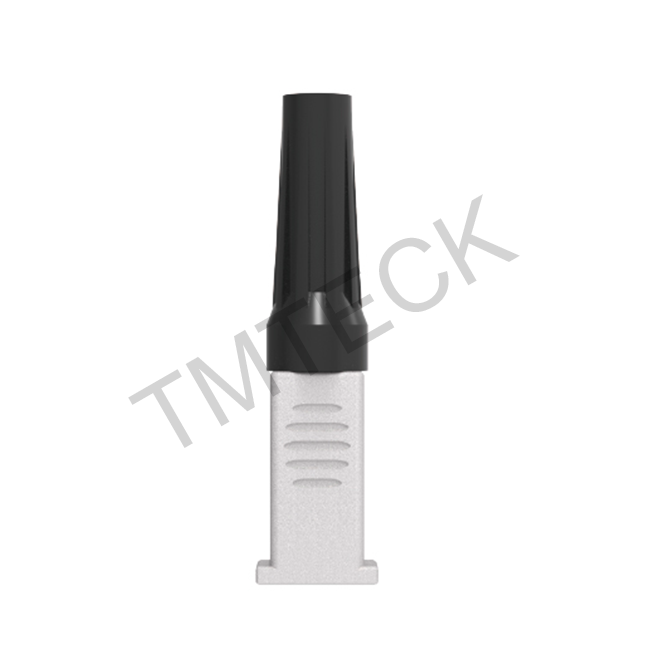

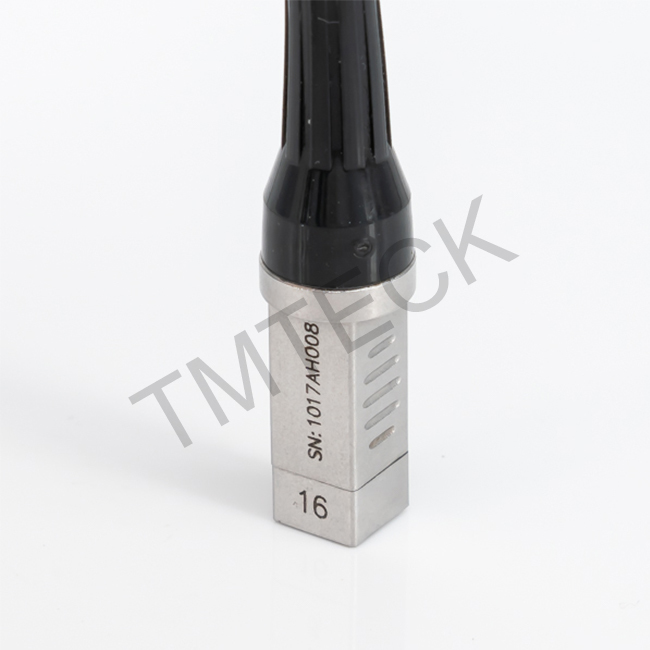

High Compatibility And Performance TS18 Small FootPrint Probe

Small-footprint Probe: Smaller size probe with case dimension minimum to 0.31x0.31x0.91 inch, widely used in the aviation field, or some small parts.

Advantages

1.High compatibility, can be compatible with most phased array flaw detection units.

2. High Performance: Good Pk-to-Pk Sensitivity and SNR, quick to detect and locate defects.

3.Smaller in Size: Easy to inspect in extremely small space.

4.Wide Application: Widely used in castings, forgings, pipes, tubes, and machined and structural components for cracks and weld defects.

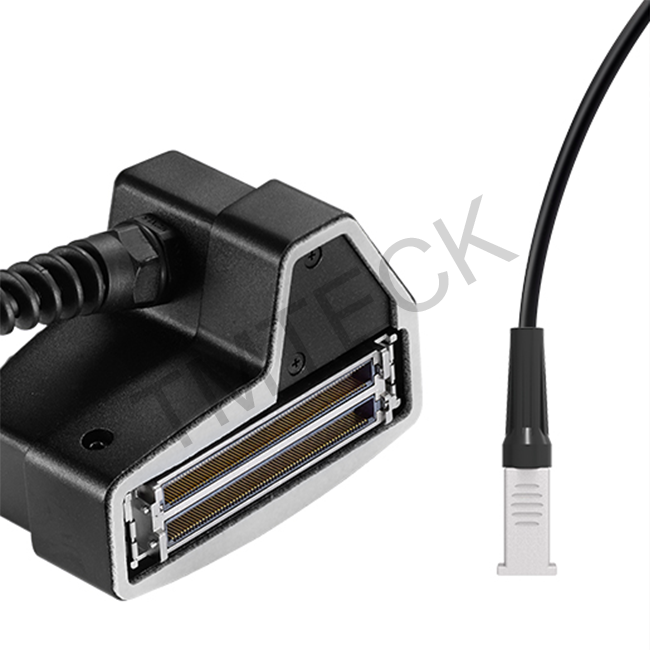

5.Multiple cable connection type: Top cable connection or side cable connection.

Applications

1.Aircraft scratches, rotors, hubs, etc.

2.Detect and quantify defects

3.Inspect castings, forgings, pipes, tubes, and machined and structural components

4.Cracks and weld defects

Probe Specification

*The standard cable length is 2.5m/8.2ft. The phased probe can be customized, including frequency, element number and pitch, aperture, etc.

Wedge Specification
